DR52 EBIKE PROJECT: VENZO RAPTOR CUSTOM BUILD - MOTOR: BAFANG BBS02 & BATTERY: 52V-12Ah
NOTE: TOTAL EBIKE MASS WITH BAFANG BBS02 MOTOR & 52V-12Ah DOLPHIN BATTERY IS 20.2 KG (44.5 LBS)
NOTE: 18" MOUNTAIN BIKE MASS (WITHOUT BBS02 MOTOR & BATTERY) IS 12.2 KG (26.9 LBS)
NOTE: EBIKE MASS WITH 52V-8Ah POCKET ROCKET II BATTERY IS LESS THAN 40 LBS
CLICK GREEN EXCEL ICON BELOW FOR COMPLETE PARTS LIST & CLICK RED ICON TO ACCESS 3D CAD FILES VIA GRABCAD

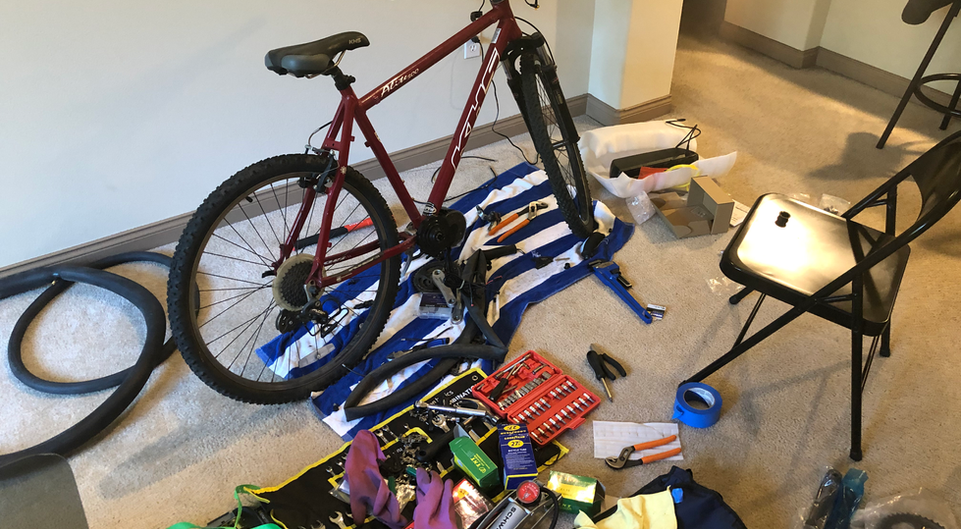

DR52 CLASS SCRATCH BUILD EBIKE WITH BAFANG BBS02 - 2020

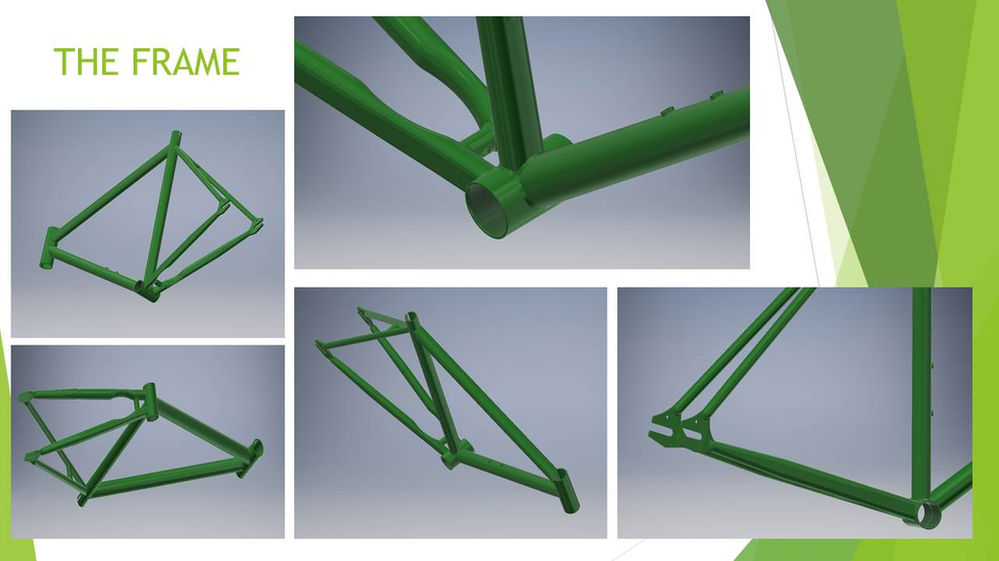

VENZO RAPTOR FRAME MODEL WITH DESIGN TABLE (CLICK EXCEL SYMBOL TO ACCESS TABLE)

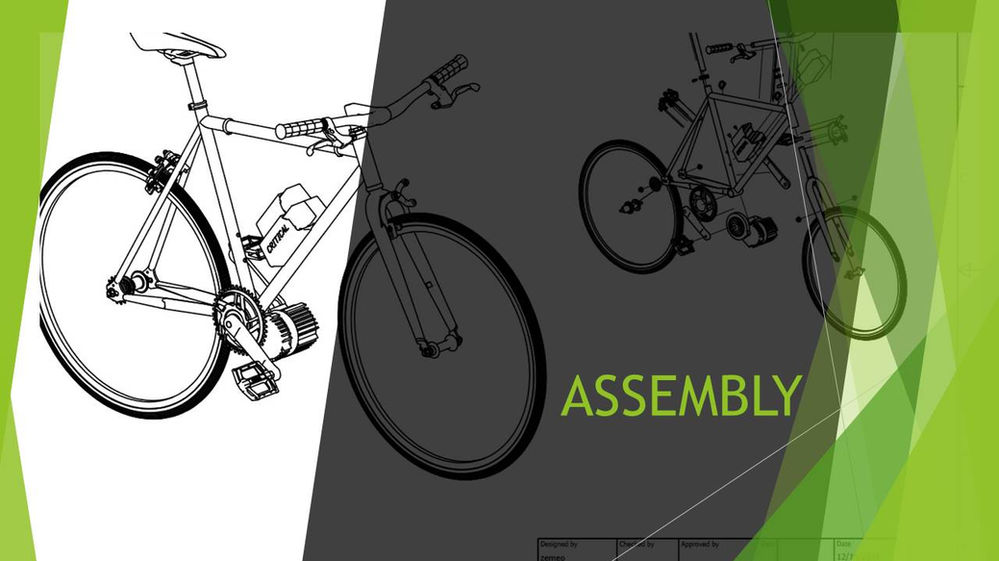

DR52 STUDENT PROJECT REPORT WITH AUTODESK INVENTOR PARTS, ASSEMBLY, & DRAWING
DR52 STUDENT PROJECT REPORT WITH AUTODESK INVENTOR PARTS, ASSEMBLY, & DRAWING
SAMPLE DR52 STUDENT IN CLASS PROJECT EBIKE BUILDS
CONVERSION 1
SPECIALIZED ROCKHOPPER COMP
MOTOR: BAFANG BBSHD
BATTERY: CUSTOM 48V - 10Ah
STUDENT CONVERSION 2
2018 BREEZER STORM 29ER
MOTOR: BAFANG BBS02
BATTERY: 48V - 8Ah
SPECIAL THANKS TO MIRA RIMAL
CONVERSION 3
MONGOOSE XR PRO
MOTOR: BAFANG BBSHD
BATTERY: CUSTOM 48V - 10Ah
STUDENT CONVERSION 4
TREK 1500 SR ROAD BIKE
MOTOR: BAFANG BBS02
BATTERY: POWERHOBBY 4S 7.2Ah (X3)
SPECIAL THANKS TO KIRK LARSON
STUDENT EBIKE BUILD - SPRING 2021 (SPECIAL THANKS TO E. VU)
STUDENT EBIKE BUILD - SPRING 2022 (SPECIAL THANKS TO V. SIMMONS)
DESIGNING & 3D PRINTING CUSTOM EBIKE BATTERY HOLDERS
